Features：

1. ON/OFF function of power supply, it will automatically shut down after standby for 5 minutes;

2. Four-bit intelligent power display can be a true reflection of the state of battery charge to guarantee the riding distance;

3. High, middle and low gears of imitation torque boost of switch gears and gear indicator display, with gear memory function, power on can automatically recover the gear state during power off;

4. 15-bit LED strip speed indicator;

5. 6Km/h boost function, and the boost light is blinking during boost, it can be used by the rider during driving a vehicle, and the vehicle driving will be easy;

6. Under-voltage indication function, when the battery is in under-voltage, the under-voltage indicator flashes;

7. The headlight switch control function, and it can turn on and off lights, when headlights are turned on, the headlight indicator is lit;

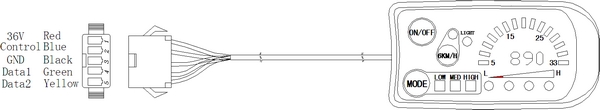

8. The adoption of five- line of digital communication is with a self-setting function of versatile parameters, users can adjust the settings such as motor parameters, velocity parameters, speed parameter according to different models;

9. The instrument is with good interchangeability, and different instruments can directly exchange with each other and copy the data parameters;

10. The optional power supply voltage is 24V, 36V and 48V;

11. Black housing;

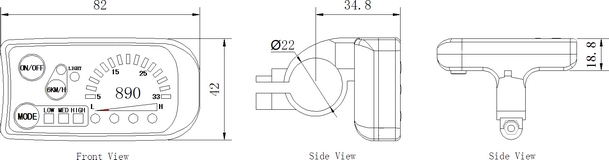

12. Dimensions：
