Home > Products -> LCD Display Meter

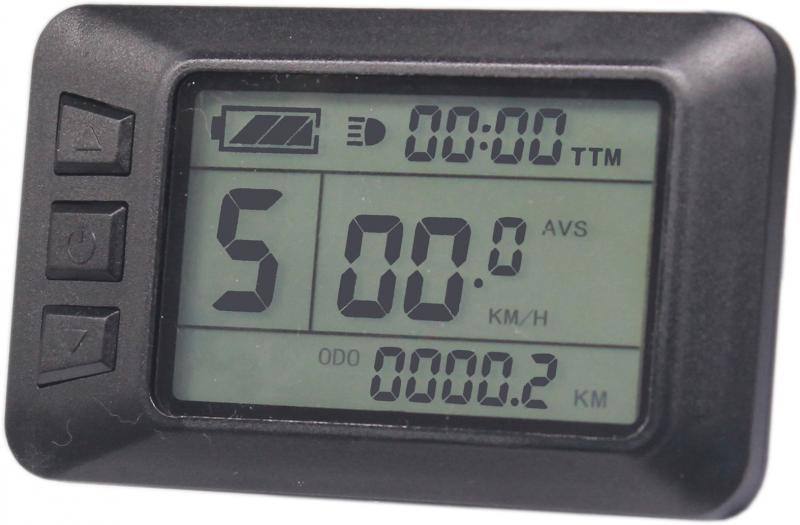

  • KT-LCD7U
  • Count:104259 Time:2017-09-26 14:34:24

  • Features£º


    1. Data display£ºit shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, battery voltage and charge status, brake status and other cycling parameters;

    2. Intelligent power£ºa true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage;

    3. Stalls setting£ºmulti-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state when turned on;

    4. Parameter setting£ºwith a number of user parameter setting functions, motor parameters, velocity measurement parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum current parameters and other operating models for settings adjustment ;

    5. Data view£ºUsers can view historical driving data and clear accordingly, view single or cumulative riding time, riding mileage, maximum speed and average speed of single riding;

    6. Vehicle boosting£ºWith 6Km/h power-assisting functions, the boost logo flashes during boosting, and riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy;

    7. Cruise and constant speed£ºWith the setting and display of the cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed;

    8. Bluetooth function£º it can replace the traditional e-bike display using wireless communication with the Bluetooth modular to achieve a variety of vehicle control and vehicle status display on the phone;

    9. USB charging£ºA USB charging port uses high reliability and high stability power chip to output 5V, 1A charging voltage;


    10. Night driving£ºWith the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night;

    11. Password setting£ºWith three-bit of power-on password setting;

    12. Automatically prompt£ºFor the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle;

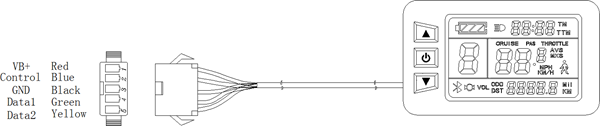

    13. Use five-line of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the data exchanges and parameters copy directly;

    14. Supply voltage of 24V, 36V, 48V can be automatically identified and compatible;

    15. Black housing;

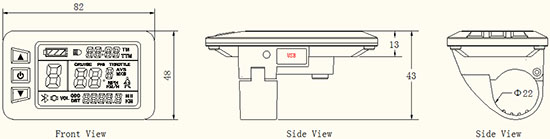

    16. Dimensions£º
